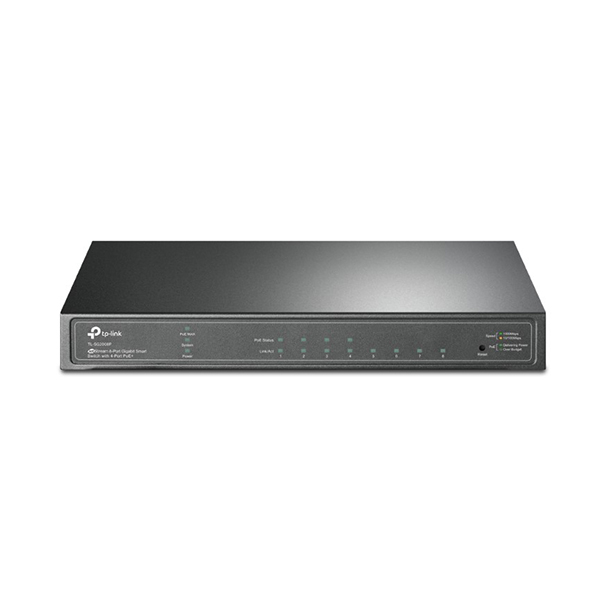

JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+

MODEL: SG2008P-Black

62 W PoE Budget: 4_ 802.3at/af-compliant PoE+ ports with a total power supply of 62 W. Full Gigabit Ports: 4_ gigabit PoE+ ports and 4_ gigabit non-PoE ports provide high-speed connections. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

| |

FULL SPECIFICATION

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface:
8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
Auto-Negotiation/Auto MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
Power Consumption:
7.9 W (220 V/50 Hz) (no PD connected)
79.2 W (220 V/50 Hz) (with 62 W PD connected)
PoE Ports (RJ45):
Standard: 802.3af/at compliant
PoE Ports: 4 Ports
Power Supply: 62 W
Dimensions ( W x D x H ): 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

DECORATION INFORMATION

DescriptionValue
Deco AvailableNo
Deco Min. Quantity
Deco Price Code

BRAND

tp-link
